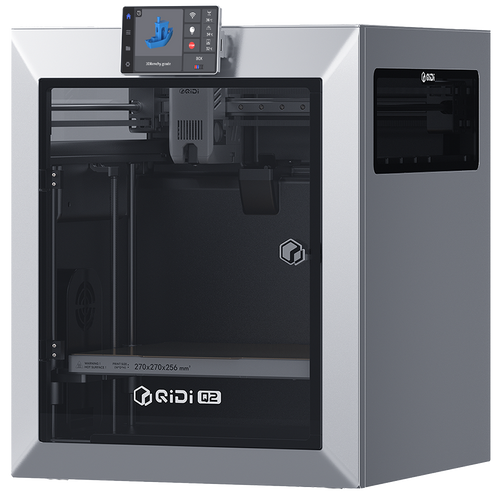

Q2

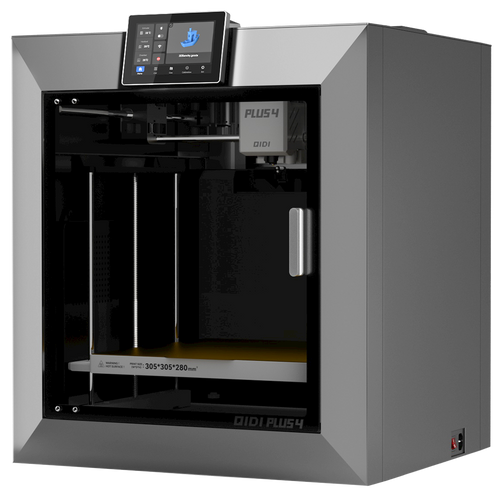

Plus 4
QIDI Box
Q1 Pro
X-Max 3
Compare QIDI printers
/
/
Basic Info
Printing Technology
Fused Deposition Modeling
Print Size (WDH)
320*320*300 mm
Dimensions
500*488*558 mm
Package Dimensions
620*630*700 mm
Net Weight

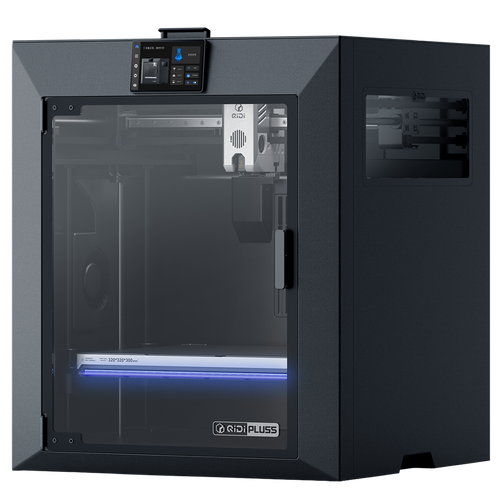

Plus5: 29 kg
Gross Weight
Plus5: 37.6 kg
Printing Technology
/
Print Size (WDH)
/
Dimensions
/
Package Dimensions
/
Net Weight
/
Gross Weight
/
Printing Technology
Fused Deposition Modeling
Print Size (WDH)
390 * 390 * 340 mm
Dimensions
558 * 578 * 612 mm
Package Dimensions
700 * 710 * 750 mm
Net Weight
40 kg
Gross Weight
49.5 kg
Body / Structure
XY Structure
CoreXY
X Axis
High Hardness Linear Guide Rail, Belt tensioned automatically
Y Axis
10mm High Hardness Linear Shafts
Z Axis
Dual Independent Lead Screw Motors, 10mm Linear Shafts*4 and Screws*2
X/Y Belt / Motor
1.5GT 9mm Width Belt,42-48 High-Speed Motor
XY Structure
/
X Axis
/
Y Axis
/
Z Axis
/
X/Y Belt / Motor
/
XY Structure
CoreXY
X Axis
High Hardness Linear Guide Rail, Belt tensioned automatically
Y Axis
12mm High Hardness Linear Steel Shafts
Z Axis
Independent 2mm lead screw motors*2, 12mm Linear Steel Shafts*4
X/Y Belt / Motor
1.5GT 10mm Width Belt, FOC Closed-loop Stepper Motor
Print Head
Print Head Temp
≤ 370°C
Extruder / Gear
Direct Extruder, Hardened Steel Dual Gears
Print Head Temp
/
Extruder / Gear
/
Print Head Temp
≤ 370°C
Extruder / Gear
Direct Extruder, Hardened Steel Dual Gears
Hot Bed
Hot Bed Temp
≤ 120°C
Hot Bed Temp
/
Hot Bed Temp
≤ 120°C
Speed
Max Tool Head Speed
600mm/s
Max Acceleration
20000mm/s²
Max Tool Head Speed
/
Max Acceleration
/
Max Tool Head Speed
800 mm/s
Max Acceleration
30000 mm/s²
Cool Down
Fans (Hot End, Model, Aux)
4-Pin PWM Fan with RPM Feedback
Motherboard Fan
Closed Loop Control
Chamber Circulation
Closed Loop Control
Chamber Temp
2nd Gen Up to 65°C, Independent Chamber Heating, 4-Pin PWM Fan with RPM Feedback
Air Filter
3-in-1 Air Filter: G3 Pre-Filter + H12 HEPA + Coconut Shell Activated Carbon
Extruder Cooler
Optional (Polar Cooler required)
Fans (Hot End, Model, Aux)
/
Motherboard Fan
/
Chamber Circulation
/
Chamber Temp
/
Air Filter
/
Extruder Cooler
/
Fans (Hot End, Model, Aux)
4-Pin PWM Fan with RPM Feedback
Motherboard Fan
Closed Loop Control
Chamber Circulation
High-power turbo, Closed Loop Control
Chamber Temp
2nd Gen Up to 65°C, Independent Heating
Air Filter
3-in-1 (G3 Pre + H12 HEPA + Coconut Shell Carbon)
Extruder Cooler
Optional (Polar Cooler required)
Sensors
Filament Tangle Det.
Yes (QIDI BOX required)
Filament Run Out
Yes
Automatic Leveling
Loadcell Sensor Integrated into the Hotend
Input Shaper / Power Loss
Yes / Yes
AI Camera Detection
Yes (Up to 1080P), Timelapse Supported
Filament Tangle Det.
/
Filament Run Out
/
Automatic Leveling
/
Input Shaper / Power Loss
/
AI Camera Detection
/
Filament Tangle Det.
Yes (QIDI BOX required)
Filament Run Out
Yes
Automatic Leveling
Loadcell Sensor Integrated into Hotend
Input Shaper / Power Loss
Yes / Yes
AI Camera Detection
Yes (Up to 1080P), Timelapse Supported
Electronics
Display Screen
5 inch 800*480 Touch Screen
Storage
32G EMMC and USB2.0 Flash Drive
Camera
Camera (Up to 1080P), Timelapse Supported
Status RGB LED
Yes
Connectivity
Wi-Fi; Ethernet, USB
Display Screen
/
Storage
/
Camera
/
Status RGB LED
/
Connectivity
/
Display Screen
5 Inch 800*480 Touch Screen
Storage
32G EMMC and USB2.0 Flash Drive
Camera
Up to 1080P, Timelapse Supported
Status RGB LED
Yes
Connectivity
Wi-Fi, Ethernet, USB
Filament
Supported Filaments
PLA, ABS, ASA, PETG, TPU, PA, PC, Carbon/ Glass Fiber Reinforced Polymer, etc
Supported Filaments
/
Supported Filaments
Wide range (PLA, ABS, PETG, TPU, PA-CF, etc.)
Power Supply
Rated Power
150W + 550W (Chamber Heating) + 500W (Heatbed); Steady-State Power (25°C Ambient): PLA 190W, ABS 500W
Rated Power
/
Rated Power
150W+500W(Chamber Heating)+700W(Heatbed)
WiFi
Wifi Frequency Bands
2.4 GHz / 5 GHz
Wifi Frequency Bands
/
Wifi Frequency Bands
2.4 GHz / 5 GHz
