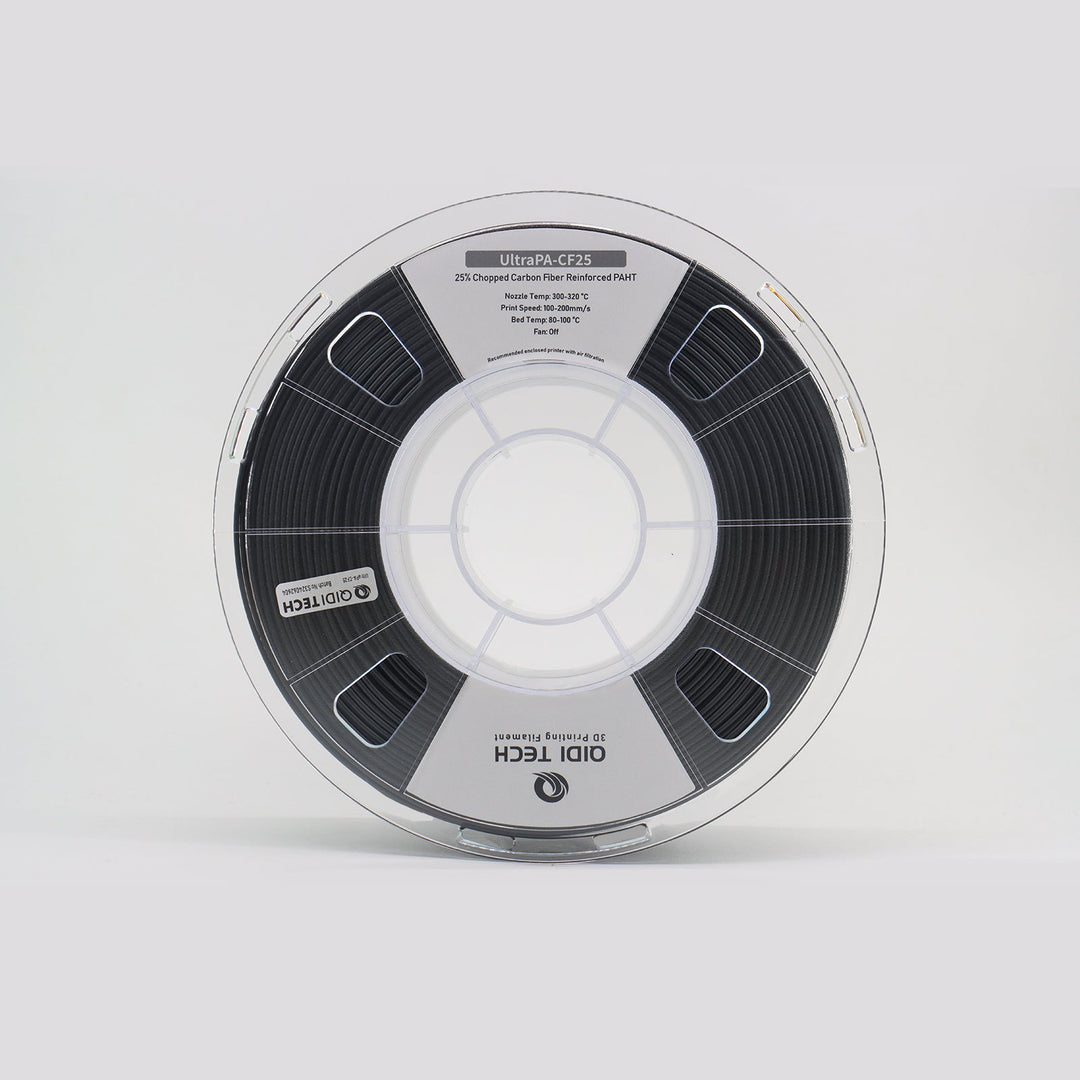

QIDI UltraPA-CF25 3D filament spool with 25% carbon fiber

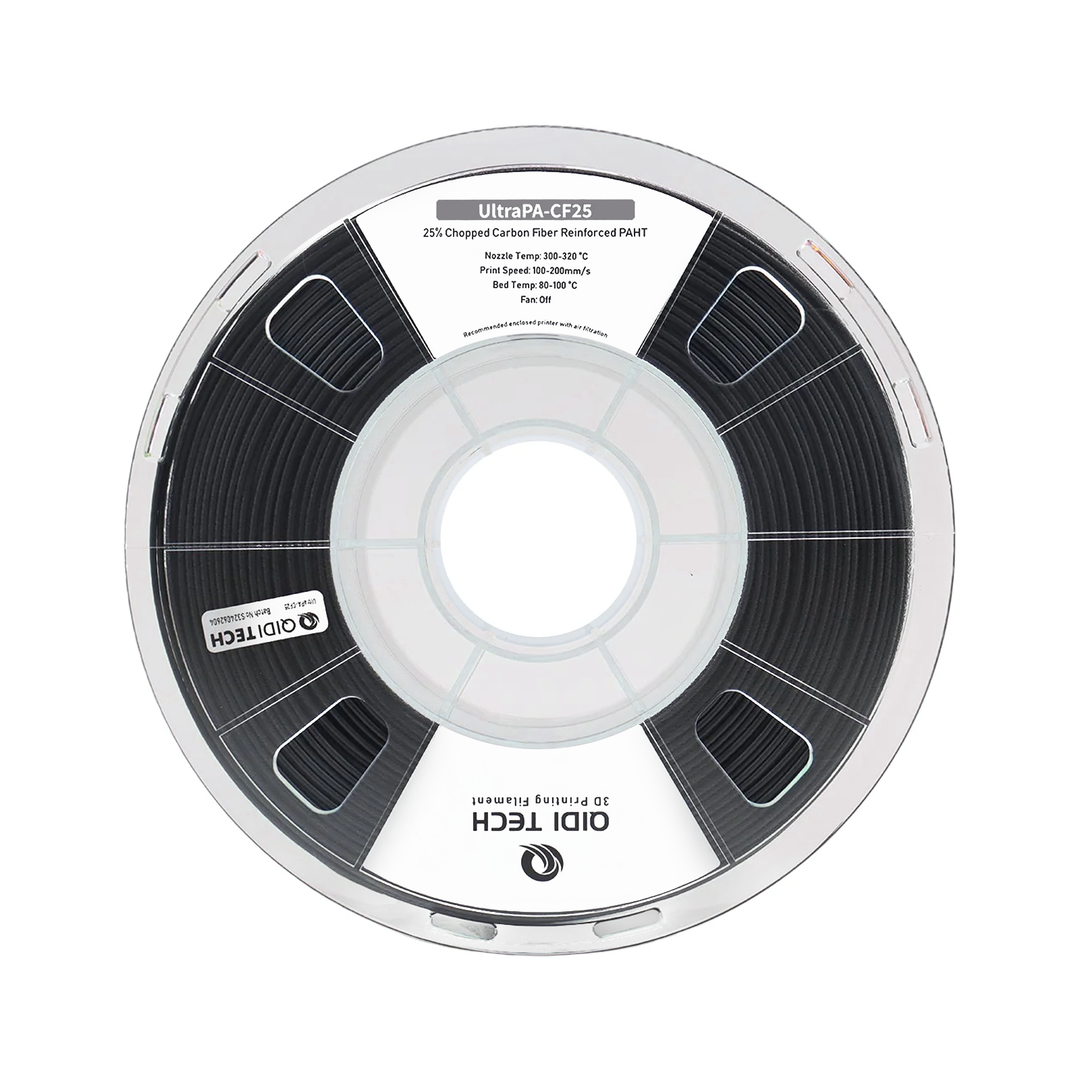

UltraPA-CF25(PPA-CF Core) Filament

Out-of-stock notice

This product is currently unavailable from our overseas warehouse.

For small-quantity purchases, please check our global store qidi3d.com and place your order there if your desired color is available. Orders will ship from our warehouse in China.

For bulk orders, please contact ryan@qidi3d.com.

Please note that some colors are not stocked on our global store either. If your desired color is unavailable there, it can only be purchased through a bulk order.

Product Features

  • Exceptional Mechanical Properties
  • High Dimensional Stability
  • Exceptional Thermal Resistance
  • Excellent layer adhesion
  • Compatible with QIDI BOX

Cautions for Use

  • 0.2 mm Nozzle Not Compatible

  • Must Be Dried before Use to Achieve Optimal Print Quality

Weight
Engineering Filament Bulk Sale UP TO 15% OFF Build More with Engineering Filament Combine eligible engineering filaments and unlock volume savings.
Trustpilot

QIDI UltraPA-CF25(PPA-CF25) 3D Printer Filament

QIDI UltraPA-CF25 is one type of 3D printing filament with 25% carbon fiber content and a skin-core structure.Using high-temperature nylon as the base material, UltraPA-CF25 has the characteristics of low moisture absorption, high strength, high wear resistance, excellent chemical resistance and high heat resistance. The 25% chopped carbon fiber content can improve the mechanical properties and heat resistance of printed parts, making it an ideal choice for high-performance engineering applications.


Exceptional Mechanical Properties

Due to UltraPA-CF25's ultra-high bending modulus and 25% carbon fiber reinforcement, UltraPA-CF25's 3D printed products have extremely high rigidity and are suitable for applications with high strength or lightweight requirements.


Filament PA12-CF PAHT-CF UltraPA-CF25
Bending strength (X-Y，Annealed) 124 MPa 157 MPa 168 MPa
Bending modulus (X-Y，Annealed) 4305 MPa 6983 MPa 7466 MPa

High Dimensional Stability

With UltraPA-CF25, you can achieve industrial-grade precision and excellent dimensional stability in every print. 25% carbon fiber reinforcement reduces problems such as warping and deformation, ensuring your printed parts maintain their precise dimensions. Whether you are working on high-precision prototypes or end-use components, UltraPA-CF25 guarantees a perfect match to your design specifications, allowing you to complete the most demanding projects with confidence.



Excellent layer adhesion

QIDI UltraPA-CF25 uses reinforced fiber coating technology to allow the extruded filament to maintain a stable skin-core structure. The skin-core structure allows the adhesion between the inner and outer layers of the filament to reach the optimal level, completely avoiding the loss of interlayer adhesion. This further improves the Z-axis interlayer strength of the final printed parts compared to pure resin materials. QIDI UltraPA-CF25 is very suitable for printing thin-walled parts and parts with high mechanical performance requirements.



Exceptional Thermal Resistance

QIDI UltraPA-CF25 has excellent thermal resistance and is very suitable for demanding applications that require stability in high temperature environments. Whether it is a functional prototype, end-use part or industrial assembly, it can maintain excellent mechanical properties under thermal stress to ensure reliability.


Filament PA12-CF PAHT-CF PPS-CF UltraPA-CF25
Heat Deflection Temperature(0.45MPa) 138.2°C 190.7°C 242.7°C 196.9°C

Accessory Compatibility

Recommended Not Recommended
Build Plate QIDI PEI Plate, HF Plate, PC Plate and Smooth Plate /
Hotend

Hardened Steel Nozzle ( 0.4 / 0.6 / 0.8 mm)

Bimetal Nozzle ( 0.4 / 0.6 / 0.8 mm)

 Brass/Copper plated Nozzle (0.2/0.4/0.6/0.8 mm)
Glue Glue Stick/ 3D LAC adhesive spray /



Recommended Printing Settings
Drying Settings (Blast Drying Oven) 80-100 °C，4-6 h
Printing and Keeping Container's Humidity < 15% RH (Sealed, with Desiccant)
Nozzle Temperature 300-340 °C
Bed Temperature (with Glue) 70-80 °C
Printing Speed 30-200 mm/s
Physical Properties
Density 1.23 g/cm³
Water absorption 1.09 %
Heat Deflection Temperature 196.9°C
Melting Temperature 237°C
Melt index 4.2 g/10min
Mechanical Properties
Tensile strength(X-Y) 118.19 ± 3.82 MPa
Elongation at break (X-Y) 1.62 ± 0.12 %
Bending Modulus 9214.34 ± 249.80 MPa
Impact Strength 7.29 ± 0.76 KJ/㎡


Downloads


pdf Filament TDS

pdf Filament MSDS


Printing Tips

Ensure sealing and drying. Nylon materials easily absorb moisture from the environment, which can cause drawing and bubbles to appear during printing, reducing the printing quality.
For more details please refer to: Filament Guide on WIKI.
