QIDI Tech X-Max 3: The Key to Rapid Prototyping for Illini Electric Motorsports
Table of Contents

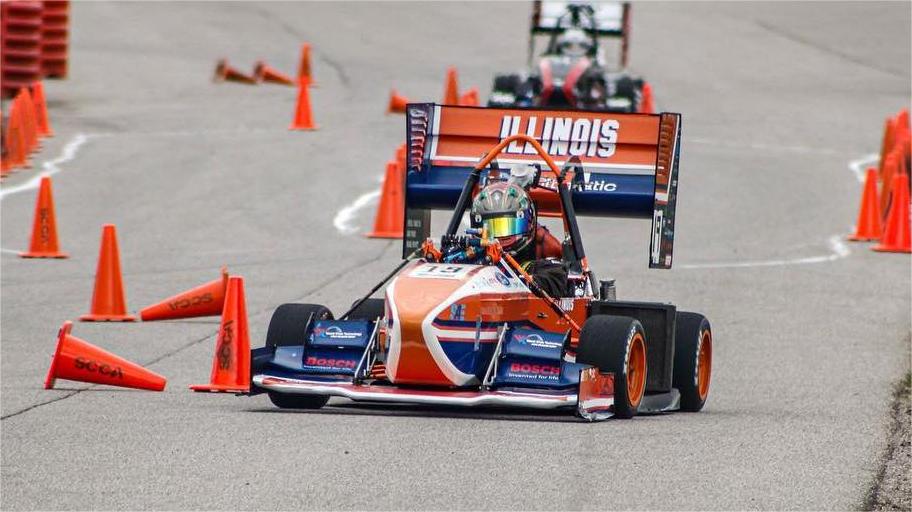

At QIDI Tech, we are proud to support the pioneering work of Illini Electric Motorsports (IEM), a student-led engineering team dedicated to designing and building cutting-edge electric vehicles. As their trusted 3D printing partner, we have equipped IEM with our state-of-the-art QIDI Tech X-Max 3 3d printer, helping them unlock new levels of rapid prototyping and design innovation for the competitive world of electric motorsports. The X-Max 3's advanced features, including high performance, material compatibility, and user-friendly workflows, have empowered the IEM team to dramatically accelerate their design cycle, produce high-precision prototypes, and push the boundaries of what's possible in electric vehicle engineering.
Rapid Prototyping: The Key to Accelerating Innovation
Rapid prototyping is the process of quickly fabricating a scale model or sample of a physical part or product using advanced 3D printing technologies. This powerful tool plays a crucial role in the world of engineering and design, particularly in the fast-paced and highly competitive field of electric vehicle development.
Benefits of Rapid Prototyping
- Accelerates the design-build-test cycle, enabling quicker iterations and optimization
- Enhances product quality and performance by allowing for thorough testing and analysis of prototypes
- Reduces time-to-market by streamlining the product development process
- Facilitates cross-team collaboration and communication through the creation of tangible samples
The Critical Need for Rapid Prototyping in Electric Vehicles
The electric vehicle industry is characterized by rapid technological advancements and fierce competition. In this dynamic environment, the ability to quickly develop and test new component designs is essential for maintaining a competitive edge. Rapid prototyping empowers engineering teams like IEM to explore innovative solutions, identify and address potential issues early on, and bring their electric vehicle designs to life with unparalleled speed and efficiency.
QIDI Tech X-Max 3: A Cutting-Edge 3D Printing Solution
The QIDI Tech X-Max 3 offers an impressive array of advanced features that make it the ideal partner for IEM's rapid prototyping needs. Let's take a closer look at some of the standout capabilities of this high-performance 3D printer.
1. Large Build Volume and High-Speed Printing
With a generous build volume of 325 x 325 x 315mm, the X-Max 3 provides ample space to accommodate the large-scale prototypes required for electric vehicle development. Additionally, the printer boasts an impressive print speed of up to 600mm/s, allowing IEM to produce parts quickly without sacrificing quality.
2. Enhanced Thermal Management
Equipped with a temperature-controlled chamber that can reach up to 65°C, the X-Max 3 excels at printing advanced engineering materials like PET-CF and PAHT-CF. This thermal management system, combined with the high-efficiency chamber circulation fan and activated carbon air filter, ensures consistent and reliable printing results.
3. Durable, Low-Maintenance Design
The X-Max 3's all-metal frame and high-grade hardened steel linear axes provide exceptional stability and rigidity, minimizing the risk of deformation and eliminating the need for frequent maintenance. This robust construction, coupled with the CoreXY motion system, delivers smooth, precise movements and reduced noise levels during operation.
With these cutting-edge features, the QIDI Tech X-Max 3 has become an invaluable tool in the IEM team's quest for rapid prototyping and innovation in the electric vehicle industry.
How the QIDI Tech X-Max 3 Enhanced IEM's Design Process
1. Transitioning from Traditional to 3D Printing
Prior to partnering with QIDI Tech, the IEM team utilized FDM 3D printing for rapid prototyping and producing custom one-off parts like motor cooling sleeves and accumulator components. However, they lacked a printer capable of printing larger parts with UL rated high-temperature materials. The introduction of the QIDI Tech X-Max 3 3D printer has enabled IEM to expand their in-house 3D printing capabilities.
2. Accelerating the Design Cycle
By leveraging the advanced capabilities of the X-Max 3, IEM has been able to dramatically reduce the time required to produce physical prototypes. The printer's high speed, large build volume, and material versatility allow the team to quickly generate multiple design iterations, test and evaluate them, and rapidly make adjustments based on the insights gained.
3. Exploring Complex Geometries
The QIDI Tech X-Max 3 has empowered the IEM team to explore more intricate and sophisticated component designs that would have been challenging or even impossible to fabricate using traditional methods. The printer's precision and ability to handle advanced materials have enabled the creation of prototypes with detailed features, complex shapes, and high-performance characteristics.
4. Prototyped Parts in Action
The IEM team has successfully utilized the QIDI Tech X-Max 3 to produce a wide range of prototyped components for their electric vehicle designs, including motor cooling sleeves, accumulator components, intricate air intake ducts with precise aerodynamic features, lightweight high-strength suspension components, and customized battery enclosures and mounting structures.
By seamlessly integrating the QIDI Tech X-Max 3 and its ability to print UL-94 rated flame-retardant parts into their workflow, the IEM team has expanded their in-house 3D printing capabilities while accelerating innovation and optimizing prototypes.
Advantages Gained by IEM through QIDI Tech X-Max 3
The partnership between IEM and QIDI Tech has equipped the team with several key advantages in the competitive field of electric vehicle racing, thanks to the capabilities of the X-Max 3.
1. Faster Production Times
Firstly, the X-Max 3 has greatly accelerated IEM's manufacturing process. With its swift printing speeds, the team can produce parts much faster than before. "We've cut down the time it takes to make components significantly," reports a member of the IEM team. This time efficiency allows for more rapid development cycles, giving them an edge in preparing for races and competitions.
2. Enhanced Precision and Quality
Additionally, the precision of the X-Max 3 printer has led to higher-quality prototypes. The level of detail it can achieve ensures that parts are consistent and fit together perfectly. This refinement in quality means fewer errors during assembly and better performance on the track. It also reduces the need for reprints, saving time and materials.
3. Complex Geometric Testing
Lastly, the X-Max 3 provides the ability to test complex geometries that were previously challenging to model. With this technology, prototypes can include intricate designs and features that mimic the final product. This capability is vital in testing how well each part will perform under the stresses of real-world racing conditions.
Educational Benefits of QIDI Tech X-Max 3
The integration of the QIDI Tech X-Max 3 into IEM has significant educational and developmental impacts on its team members, reinforcing the bridge between academic concepts and real-world engineering.
1. Tech-Driven Learning
The use of cutting-edge technology like the X-Max 3 enhances student learning by providing hands-on experience with advanced tools. Students aren't just hearing about innovative manufacturing methods in lectures-they're using them. This direct interaction with state-of-the-art equipment prepares students for modern workplaces where such technology becomes increasingly standard.
2. Collaborative Skills Across Disciplines
With the X-Max 3, students from different engineering backgrounds come together to work on a common goal. Mechanical engineers, electrical engineers, and computer scientists, among others, collaborate, allowing for cross-discipline insights and solutions. This teamwork simulates actual industry environments and fosters well-rounded professionals capable of interdisciplinary cooperation.
3. Real-World Problem-Solving
Additionally, the printer's capabilities in producing complex parts offer students a taste of industry challenges. They learn to navigate the constraints and demands of creating components that must meet precise specifications, giving them problem-solving skills that are critical in their future careers. Through the practical application of their studies, IEM members gain the confidence and competence to tackle the hurdles they'll face in the fast-evolving engineering sector.
Join the Engineering Revolution
The partnership between IEM and QIDI Tech is a prime example of how collaboration can revolutionize an industry. By arming IEM with the advanced QIDI Tech X-Max 3 printer, this alliance has dramatically sped up prototype development, fine-tuned the accuracy of engineering designs, and allowed for groundbreaking geometric testing. This strategic synergy doesn't just push IEM ahead in the race; it also forges a path for students to gain invaluable experience, preparing them as future innovators. Together, they're not just speeding past competition-they're shaping the future of engineering. Join us in this engineering revolution and witness how partnerships like these can drive technological and educational advancements forward.
